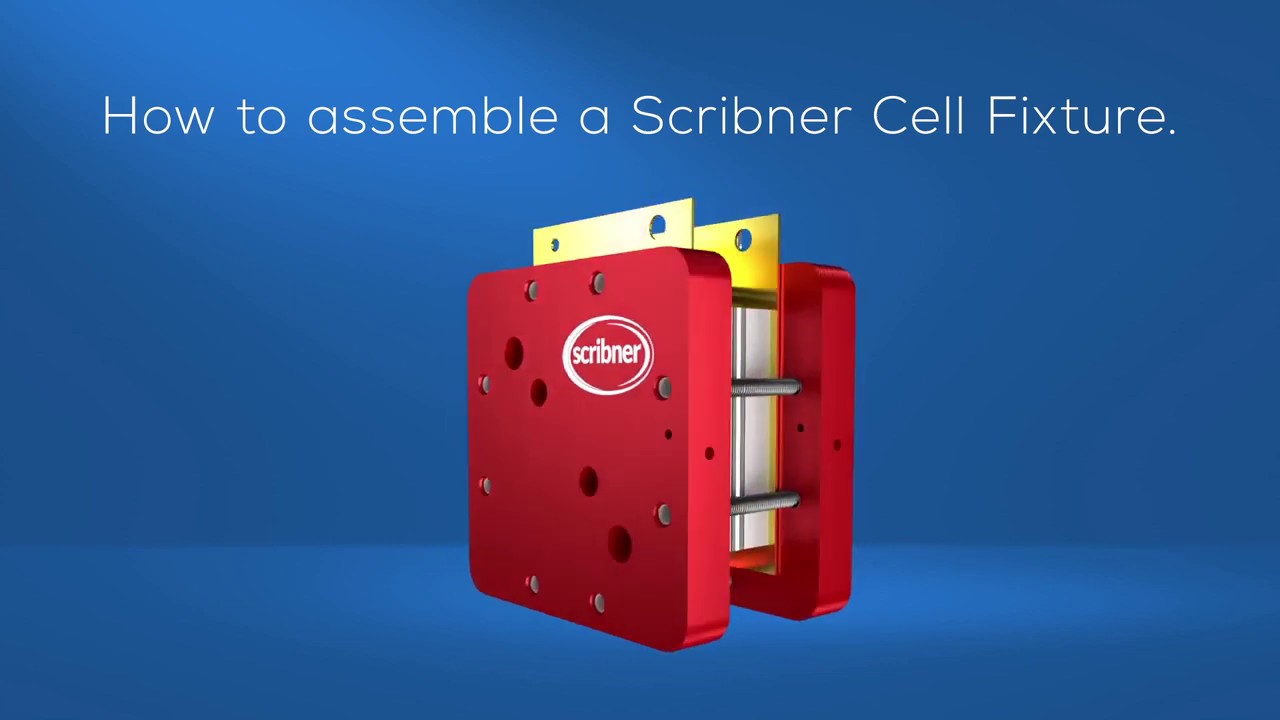

Fuel Cell Fixture

당사의 액체 가스 연료 전지 고정 장치는 직접 메탄올 및 포르메이트 연료 전지와 같은 액체 연료 전지에 이상적입니다.

액체 측의 모든 습식 구성 요소는 비금속이며 내화학성이 높습니다. Scribner 액체-가스 연료 전지 설비는 비용을 절약할 수 있는 좋은 방법입니다.

Scribner Associates에서만 사용 가능

 Features

• Fuel Cell Test Fixture is suitable for use with 5 and 25 cm2 area cells
• Configuration for Liquid Fuels available
• All wetted components of the liquid side are non-metallic and highly chemical resistant
• Gold-plated copper current collectors (2)
• Anodized aluminum end plates (2) with reactant input/output ports, stainless
  steel Swagelok® compression fittings, cartridge heaters and thermocouple well
• 60 cm heavy-gauge copper conductor load cables
• Gaskets – 51, 152 and 254 µm (0.002, 0.006 and 0.01 inch)
• Templates for preparation of gaskets
• Gaskets, gasket templates and additional hardware such as bolts, washers, fittings and o-rings
• Compatible with BekkTech in-plane conductivity cell (BT – 112)
• Operating temperature up to 200 °C
• 115 V or 230 V cell heaters available

Cell Components

• Ultra-high purity, sealed POCO graphite flow fields with precision machined
  serpentine or interdigitated flow pattern (custom flow patterns available)
• Gold-plated copper current collectors (2)
• Anodized aluminum end plates (2) with reactant input/output ports, stainless steel
• 60 cm (24 in.) heavy-gauge copper conductor load cables
• Gaskets – 51, 152 and 254 micrometer (0.002, 0.006 and 0.01 inch)
• Templates for preparation of gaskets
• Gaskets, gasket templates and additional hardware such as bolts, washers, fittings and O-rings

Options

Product Support Documents

• Download the Fuel Cell Fixture Datasheet
