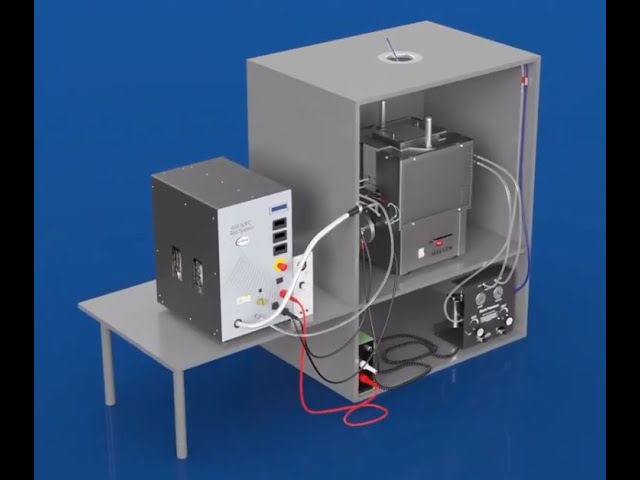

855 SOFC Test System


고성능, 높은 정확도가 있는 시스템으로 잘 알려진 855 SOFC 테스트 시스템은 통합된 턴키 Solid Oxide Fuel Cell  평가장비로 아래의 특징이 있습니다.


  • 더 낮은 측정 범위를 위한 0볼트 기능
  •  프로그래밍 가능한 전원 공급 장치를 추가해 전기 분해 모드를 포함 가능
  • FuelCell® 소프트웨어를 통해 SOFC와 SOEC 모드 간 자동 전환
  • FuelCell® 소프트웨어 및 실험 방법 설명서가 포함
  • 옵션 : EIS & HFR (881 FRA)

 Features


  • Suitable for Button Cells and Planar Cells
  • Multi Range Electronic load 5/25/50 A, 100 W, 20 V
  • FuelCell® software for user-friendly computer controlled cell operation & experimentation
  • Stainless Steel Anode humidifier with Bypass Valve and auto waterfill
  • Programmable Power Supply for SOEC mode operation – 100 A / 5 V
  • Power Supply mode includes Voltage & Current control with Constant, Scanning & Step-Stair experiments
  • Up to five mass flow controllers available
  • Includes Furnace Control hardware with redundant over-temperature protection
  • Constant or stoichiometric-controlled reactant flow rate
  • Zero Volt Capability
  • Current, voltage or power control mode
  • Continuous real time cell resistance and IR-free voltage measurement by Current Interrupt
  • Whole cell voltage plus two high-impedance reference inputs for half-cell data
  • Cell main terminals & sense inputs tolerant of non-isolated cell
  • Safety features include detection of alarm conditions and automatic hardware shutdown for safe, reliable operation


Products                                                            Description

881 FRAIntegrated FRA for High Frequency Resistance (HFR) and Electrochemical Impedance Spectroscopy (EIS) measurement from 1 mHz to 10 kHz
Manual and Auto MultiGas ModulesMultiple reactant gas selector
Reformate Simulation
DI Water TankSimple solution for pressurized delivery for existing DI/RO water source
Button Cell and Planar SOFC Test Fixture and FurnaceSOFC fixtures with custom designed furnace and redundant over-temperature control for added safe

Specification:                                                   Details

Electronic Load:
Maximum Load Current:5/25/50 A
Maximum Load Power:100 W
Minimum Load Resistance:< 2 mΩ (100 mV @ 50 A at load terminals)
Current Resolution:1 mA for 5/25/50 A
Current Accuracy:0.3 % of full scale current rating
Voltage Measurement and Data Acquisition:
Maximum Whole Cell Voltage:20 V
Maximum Reference Electrode Voltage:9.999 V
Sense Lead Input Resistance:> 35 kΩ
Voltage Resolution:I mV
Voltage Accuracy:±3 mV ±0.3 % of reading
Voltage and Current Data Update Rate:100 Hz
Reactant Gas Control System:

All 316 stainless steel construction of humidifiers, flow path, valves and mass flow controllers, with Swagelok® fittings
Mass Flow Control:Anode up to 1 SLPM and cathode up to 3 SLPM*. Software controlled mass flow controllers. Automatic N2 purge valves on anode and cathode
Alarm Inputs:Gas supply pressures (3), humidifier water level (1), furnace over temperature (1), and external (1)
Temperature Controllers:
Quantity:(3) Furnace, anode humidifier, cell temp
Set and Report Accuracy:±0.25 % of span, ±1 least significant digit
Sensor Type:Thermocouple, type K (R/S also available)
Temperature Limit Controller:(1) Furnace over-temp
Humidifier:Anode only, sparger-type, single passivated 316L W heaters per bottle
Temperature Range:Ambient to 99 ° C

Automated humidifier bypass
Environment:
Operating Temperature:0 - 40 °C
Power Source:120 V, 50/60 Hz, 900 W
Enclosure Type:Single bench top enclosure
Size and Weight:18” H x 11” W x 19” D, 50 lb

46 cm x 28 cm x 48 cm, 23 kg
Safety Features:Automatic shutdown and N2, purge with under voltage, over-current, over-temperature, loss of reactant or purge gas pressure, furnace over-temperature limit, communications failure or external alarm. manual emergency stop switch included for manual shutdown by operator.
