MSR evo Electrode Rotator (AFMSR24A1)
Electrode Rotator evoLUTION
The MSR evo Electrode Rotator is the newest version of the classic, most-popular, most-cited electrode rotator in the world, the MSR.
Pine Research사의 MSR Evo 로테이터는 세계에서 가장 인기있고, 가장 많이 인용된 MSR 로테이터의 최신버전입니다.
이 유연한 디자인은 RDE, RRDE 및 RCE 실험에 사용할 수 있습니다.
샤프트 및 전극은 별도로 구매하거나 미리 구성된 여러 제품 번들의 일부로 구매할 수 있습니다
일시 정지/중지/시작 버튼이 있는 업데이트된 컨트롤 패널, 더 밝아진 LED 디스플레이, 작아진 컨트롤 패널, WaveDriver 200 전기화학 워크스테이션과 같은 Pine Research 전기화학 워크스테이션과 페어링될 때 고급스러운 인터페이스 기능 등을 특징으로 합니다.
MSR 로테이터의 주요 기능은 다음과 같습니다.
0 ~ 10,800 RPM 범위에서 회전속도 조정 가능
판독값 표시의 1% 이내 정확도 (100~200RPM ±2%, 200~10,800RPM ±2%)
Rotator RoHS Compliant
실버-카본 브러시 접점: 빨간색은 디스크용, 파란색은 링용입니다.
수백 가지의 호환 가능한 RDE, RCE 및 RRDE 전극 디자인.
*컨트롤러가 주로 업그레이드 되어 샤프트, 전극 등은 기존 MSR 로테이터와 모두 호환됩니다.
# | Description |
Pine Research MSR evo Rotator | |
AFMSR24A1 | MSR Evo Electrode Rotator with CE and ETL Marks |
power cord, shaft, and electrodes sold separately | |
Electrode Options | Please note that electrodes, shafts for the MSR Rotator are sold separately. New customers may wish to consider one of the complete product bundles listed below. |
Basic MSR evo Rotator Bundles | |
[MSR-RDE-E5] | MSR Rotating Disk Electrode Bundle |
features E5 series RDE tip with fixed glassy carbon disk | |
includes MSR Rotator, shaft, electrodes, cell, and accessories | |
[MSR-RDE-E5TQ] | MSR ChangeDisk Rotating Disk Electrode Bundle |
features E5TQ series ChangeDisk RDE tip with interchangeable glassy carbon disk | |
includes MSR Rotator, shaft, electrodes, cell, and accessories | |
[MSR-RRDE-E8R4] | MSR Rotating Ring-Disk Electrode Bundle |
features E8 series High-Efficiency RRDE tip with a fixed platinum ring and a fixed glassy carbon disk | |
includes MSR Rotator, shaft, electrodes, cell, and accessories | |
[MSR-RRDE-E6R1] | MSR ChangeDisk Rotating Ring-Disk Electrode Bundle |
features E6R1 series ChangeDisk RRDE tip with platinum ring and interchangeable glassy carbon disk | |
includes MSR Rotator, shaft, electrodes, cell, and accessories | |
MSR evo Rotator/WaveNowXV Potentiostat Bundles | |
[WNXV-MSR-RDE-E5] | MSR Rotator Rotating Disk Electrode with WaveNowxv Bundle |
features E5 series RDE tip with fixed glassy carbon disk | |
includes potentiostat, MSR Rotator, software, cables, electrodes, cell, and accessories | |
[WNXV-MSR-RDE-E5TQ] | MSR Rotator ChangeDisk Rotating Disk Electrode with WaveNowxv Bundle |
features E5TQ series RDE tip with removable glassy carbon disk insert | |
includes WaveNowxv potentiostat, MSR Rotator, software, cables, electrodes, cell, and accessories | |
MSR Rotator/WaveNow Wireless Potentiostat Bundles | |
[WNW-MSR-RDE-E5] | MSR Rotator Rotating Disk Electrode with WaveNow Wireless Bundle |
features E5 series RDE tip with fixed glassy carbon disk | |
includes potentiostat, MSR Rotator, software, cables, electrodes, cell, and accessories | |
[WNW-MSR-RDE-E5TQ] | MSR Rotator ChangeDisk Rotating Disk Electrode with WaveNow Wireless Bundle |
features E5TQ series RDE tip with removable glassy carbon disk insert | |
includes potentiostat, MSR Rotator, software, cables, electrodes, cell, and accessories | |
MSR evo Rotator/WaveDriver 40 DC Bipotentiostat Bundles | |
[WD40-MSR-RDE-E5] | MSR Rotating Disk Electrode with WaveDriver 40 Bundle |
features E5 series RDE tip with fixed glassy carbon disk | |
includes WaveDriver 40 bipotentiostat, MSR Rotator, software, cables, electrodes, cell, and accessories | |
[WD40-MSR-RDE-E5TQ] | MSR ChangeDisk Rotating Disk Electrode with WaveDriver 40 Bundle |
features E5TQ series RDE tip with removable glassy carbon disk insert | |
includes WaveDriver 40 bipotentiostat, MSR Rotator, software, cables, electrodes, cell, and accessories | |
[WD40-MSR-RRDE-E8R4] | MSR Rotating Ring-Disk Electrode with WaveDriver 40 Bundle |
features E8 series High-Efficiency RRDE tip with a fixed platinum ring and a fixed glassy carbon disk | |
includes WaveDriver 40 bipotentiostat, MSR Rotator, software, cables, electrodes, cell, and accessories | |
[WD40-MSR-RRDE-E6R1] | MSR ChangeDisk Rotating Ring-Disk Electrode with WaveDriver 40 Bundle |
features E6R1PK series ChangeDisk RRDE tip with a fixed platinum ring and a removable glassy carbon disk insert | |
includes WaveDriver 40 bipotentiostat, MSR Rotator, software, cables, electrodes, cell, and accessories | |
MSR evo Rotator/WaveDriver 100 EIS Potentiostat Bundles | |
[WD100-MSR-RDE-E5] | MSR Rotator Rotating Disk Electrode with WaveDriver 100 Bundle |
features E5 series RDE tip with fixed glassy carbon disk | |
includes WaveDriver 100 potentiostat, MSR Rotator, software, cables, electrodes, cell, and accessories | |
[WD100-MSR-RDE-E5TQ] | MSR Rotator ChangeDisk Rotating Disk Electrode with WaveDriver 100 Bundle |
features E5TQ series RDE tip with removable glassy carbon disk insert | |
includes WaveDriver 100 potentiostat, MSR Rotator, software, cables, electrodes, cell, and accessories | |
[WD100-MSR-RCE15] | MSR Rotating Cylinder Electrode with WaveDriver 100 Bundle |
features 15-mm OD RCE shaft on MSR Rotator | |
includes WaveDriver 100 potentiostat, MSR rotator, software, cables, electrodes, and accessories | |
MSR evo Rotator/WaveDriver 200 EIS Bipotentiostat Bundles | |
[WD200-MSR-RDE-E5] | MSR Rotating Disk Electrode with WaveDriver 200 Bundle |
features E5 series RDE tip with fixed glassy carbon disk | |
includes WaveDriver 200 bipotentiostat, MSR Rotator, software, cables, electrodes, cell, and accessories | |
[WD200-MSR-RDE-E5TQ] | MSR Rotator ChangeDisk Rotating Disk Electrode with WaveDriver 200 Bundle |
features E5TQ series RDE tip with removable glassy carbon disk insert | |
includes WaveDriver 200 bipotentiostat, MSR Rotator, software, cables, electrodes, cell, and accessories | |
[WD200-MSR-RRDE-E8R4] | MSR Rotating Ring-Disk Electrode with WaveDriver 200 Bundle |
features E8 series High-Efficiency RRDE tip with a fixed platinum ring and a fixed glassy carbon disk | |
includes WaveDriver 200 bipotentiostat, MSR rotator, software, cables, electrodes, cell, and accessories | |
[WD200-MSR-RRDE-E6R1] | MSR Rotator ChangeDisk Rotating Ring-Disk Electrode with WaveDriver 200 Bundle |
features E6R1PK series ChangeDisk RRDE tip with a fixed platinum ring and a removable glassy carbon disk insert | |
includes WaveDriver 200 bipotentiostat, MSR Rotator, software, cables, electrodes, cell, and accessories |
Description
Pine Research사의 MSR evo Rotator는 전 세계적에서 가장 널리 사용되는 MSR Rotator 로테이터의 최신 버전입니다. 이 유연한 전기화학 기기는 RDE, RRDE 및 RCE 실험에 사용할 수 있습니다.
전극의 회전 속도는 모터 제어 장치의 전면 패널에 있는 제어 노브를 사용하여 조정할 수 있을 뿐 아니라 Potentiostat 또는 타사 파형 발생기가 제공하는 아날로그 제어 신호를 통해 제어할 수 있습니다. 회전 속도는 전면 패널의 LCD 디스플레이를 사용하여 볼 수 있습니다. 회전 속도는 0~10,800RPM 범위에서 조정할 수 있으며 디스플레이 판독값의 1% 이내로 정확합니다. 전면 패널에서 사용할 수 있는 회전 속도에 비례하는 출력 신호를 통해 회전 속도를 모니터링할 수도 있습니다.

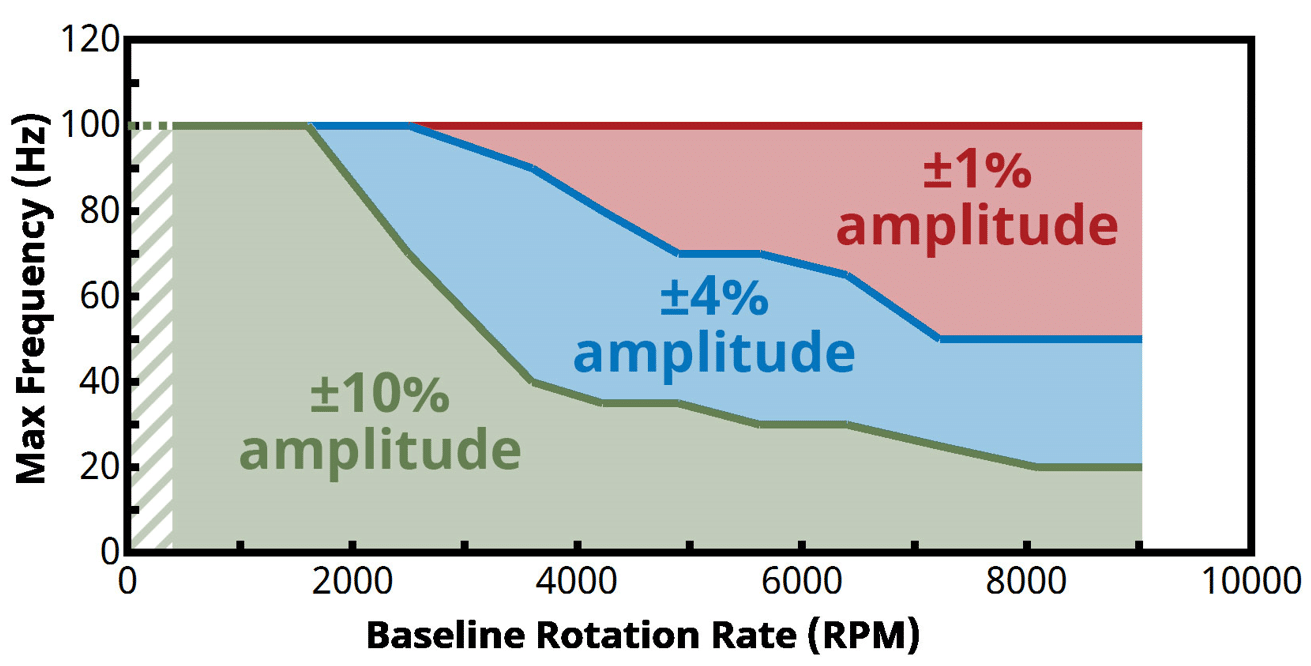

회전 속도는 사인파, 구형파 또는 기타 외부에서 생성된 파형에 의해 제어 및 변조될 수 있습니다. 모터와 모터의 제어 회로의 뛰어난 가속 특성으로 인해 회전 속도가 매우 작은 오류로 제어 파형을 따를 수 있습니다. 이 기능은 HMV(Hydrodynamic Modulation Voltammetry)와 같은 기술에 특히 바람직합니다.
로테이터의 모터는 셀 받침대로부터 쉽게 올리거나 내릴 수 있어 전극팁을 빠르고 쉽게 담그거나 제거할 수 있습니다. 인클로저 베이스는 내화학성 폴리프로필렌으로 만들어졌으며 커다란 인클로저 창을 통해 작동 중 회전하는 쉽게 볼 수 있습니다. (글러브 박스 또는 흄 후드에서 제품을 사용하기 위해 더 작은 베이스가 별도로 제공됩니다.)

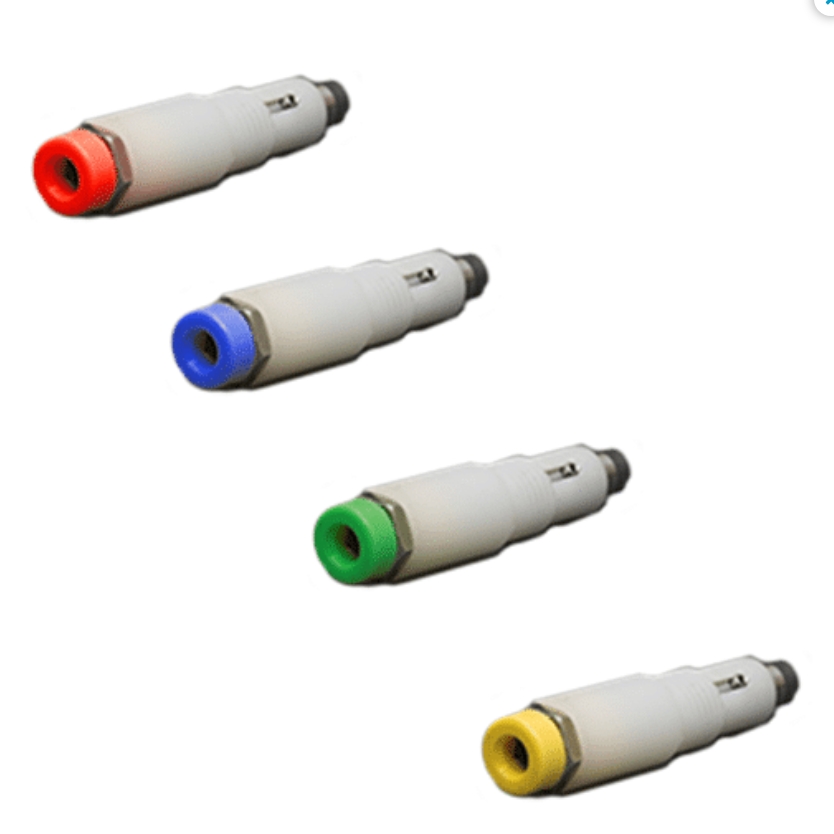

전극은 실버-카본 브러시를 사용하여 회전축에 연결됩니다. 두 쌍의 브러시가 있는데 빨간색은 디스크용이고 파란색은 링용입니다.
Specification (AFMSR24A1)
Motor | |
Control method | Closed loop servo-system; temperature compensated tachometer mounted on motor shaft |
Maximum continuous torque | 30.4 mN·m |
Motor power | 20 W |
Motor protection | 2 Amp thermal-type circuit breaker current limited power supplies |
Motor type | Permanent Magnet |
Modulation boundaries | |
Electrical | |
Electrode connections | Disk electrode: two red banana jacks on motor unit, Ring electrode: two blue banana jacks on motor unit |
Rotator AC power input | 100 - 240 VAC, ±10%, 50/60 Hz, 2A |
Power switch location | Front of control unit |
Back panel controls | 8-pin I/O connector, Circuit breaker reset button |
Front panel controls | External/manual control switch, Power switch, Run/pause button |
Rotator I/O Connections | Chassis ground, External stop signal, External voltage input (external rate control), TTL logic (active high or active low), Voltage output |
Grounding | |
Rotator chassis terminal | Chassis connection on back panel 8-pin connector |
Rotator earth ground | No direct connection available |
Rotation Rate | |
Rate limits | 0 to 10,800 RPM |
Rate accuracy | 100 to 200 RPM: accurate to within ±2 counts of display reading; 200 to 10,800 RPM: accurate to within ±1% of display reading |
External rate control | Optional rate control via input signal on external I/O port; available control ratios: 1, 2, or 4 RPM/mV, jumper selectable |
Rate display | 4 ½ digit display indicates rotation rate (RPM) |
Rate output | Voltage output accessible from back panel 8-pin connector |
Start/stop (front panel) | Push-button toggle on front panel with LED indicators for “pause” and “run” |
Start/stop (external) | Available TTL logic: active high or active low; jumper selectable, Front panel LED indicates when external motor stop is active, Optional digital motor stop input signal on external I/O port |
Physical | |
Control unit dimensions | 27 × 25 × 11 cm (10.8 × 9.8 × 4.3 in) |
Enclosure dimensions | 48 × 40 × 54 cm (18.8 × 15.5 × 21 in) |
Enclosure base and sides materials | White polypropylene (PP) |
Enclosure window material | Clear polycarbonate (PC) |
Center post/support rod material | 303 stainless steel |
Operating temperature | 10 °C - 40 °C (50 °F - 104 °F) |
Rotator shipping weight | 27 kg (60 lb) |
Safety & Environmental | |
Rotator RoHS compliant | Yes |
Documention

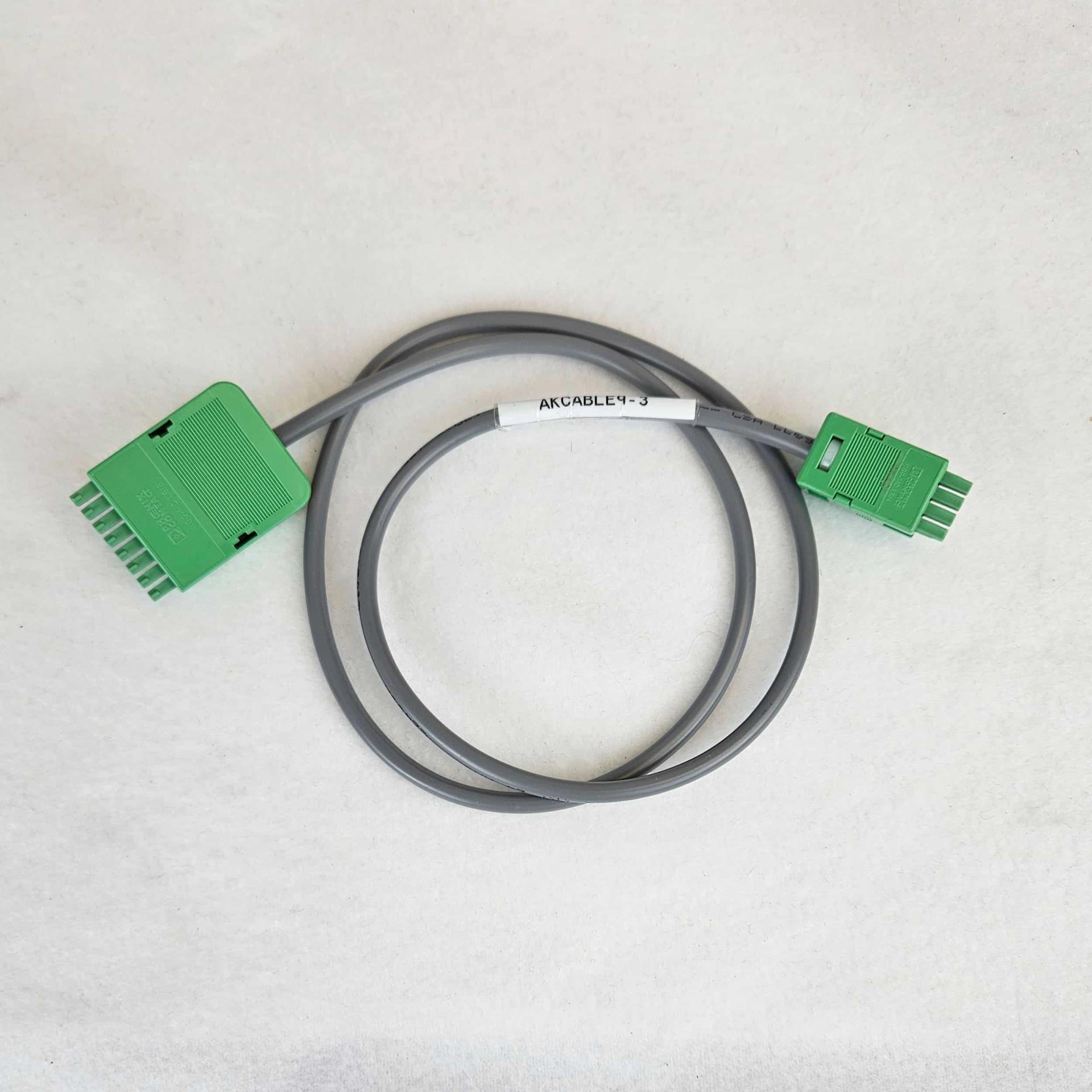

MSR Electrode Rotator | |
DRU10265 | MSR evo Electrode Rotator User Guide click here to download (8 MB download) |
DRU10002 | MSR Electrode Rotator User Guide (단종MSR 매뉴얼) |
DRK10057 | MSR Rotator Control by Pine Research Potentiostats |

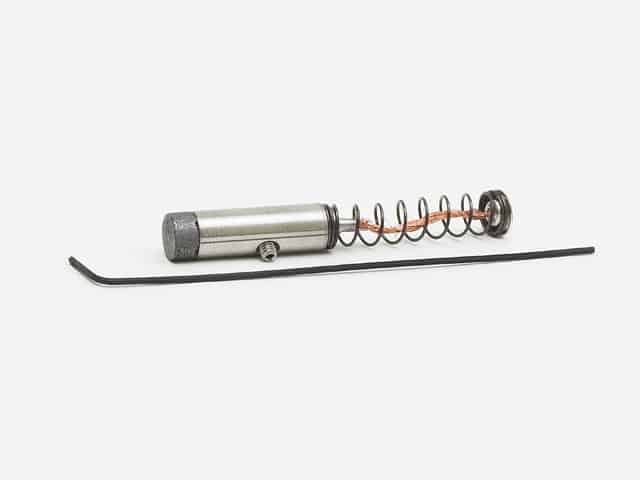

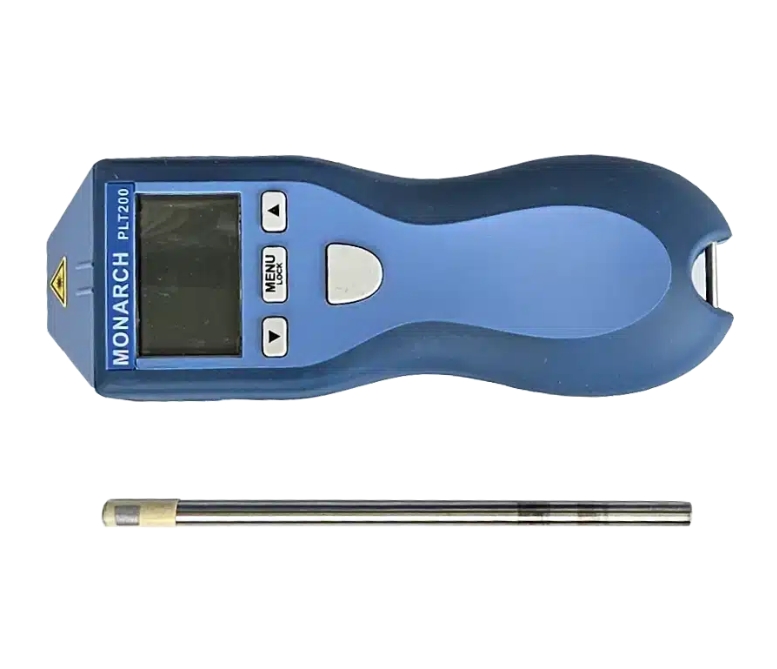

DRK10051 | MSR Rotator Brush Replacement Information |
DRB10087 | MSR Electrode Rotator Marketing Brochure (low resolution) |
DRK10231 | MSR Rotator Calibration and Verification |
