WaveVortex 10 Electrode Rotator

WaveVortex® 10은 Pine Research의 소형 연구 등급 로테이터 장비입니다.

설치 공간이 작은 WaveVortex 10은 공간 제약이 있는 실험실이나 글로브박스 내부에서 RDE 및 RRDE 실험에 이상적입니다.

WaveVortex 10 디자인은 로테이터, 제어 장치, 샤프트 및 인클로저로 구성됩니다.

WaveVortex 10은 Pine Research에서 제조한 다양한 표준 RDE 및 RRDE 전극과 다양한 셀, 유리 제품 및 액세서리와 호환됩니다.


  • 최대 8000RPM까지 회전 속도 조정 가능
  • 좁은 공간에 쉽게 설치
  • 다양한 Pine Research RDE 및 RRDE 팁 디자인과 호환 가능
  • 모터 인터록이 있는 통합 인클로저
#Description
WaveVortex 10 Rotator
AF01WV10WaveVortex 10 Electrode Rotator

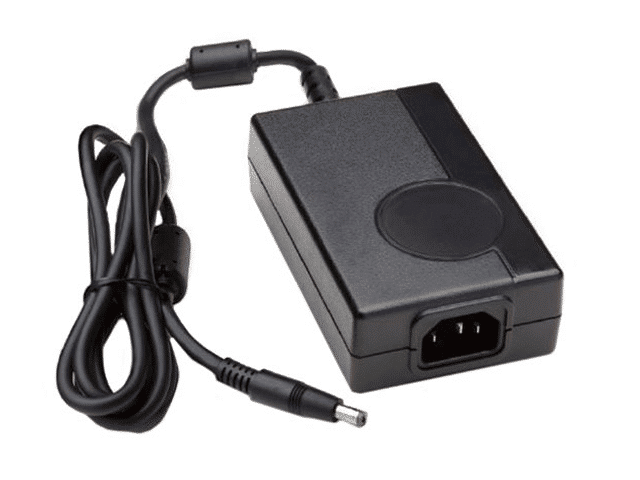

파워코드 포함
Basic WaveVortex 10 Rotator Bundles

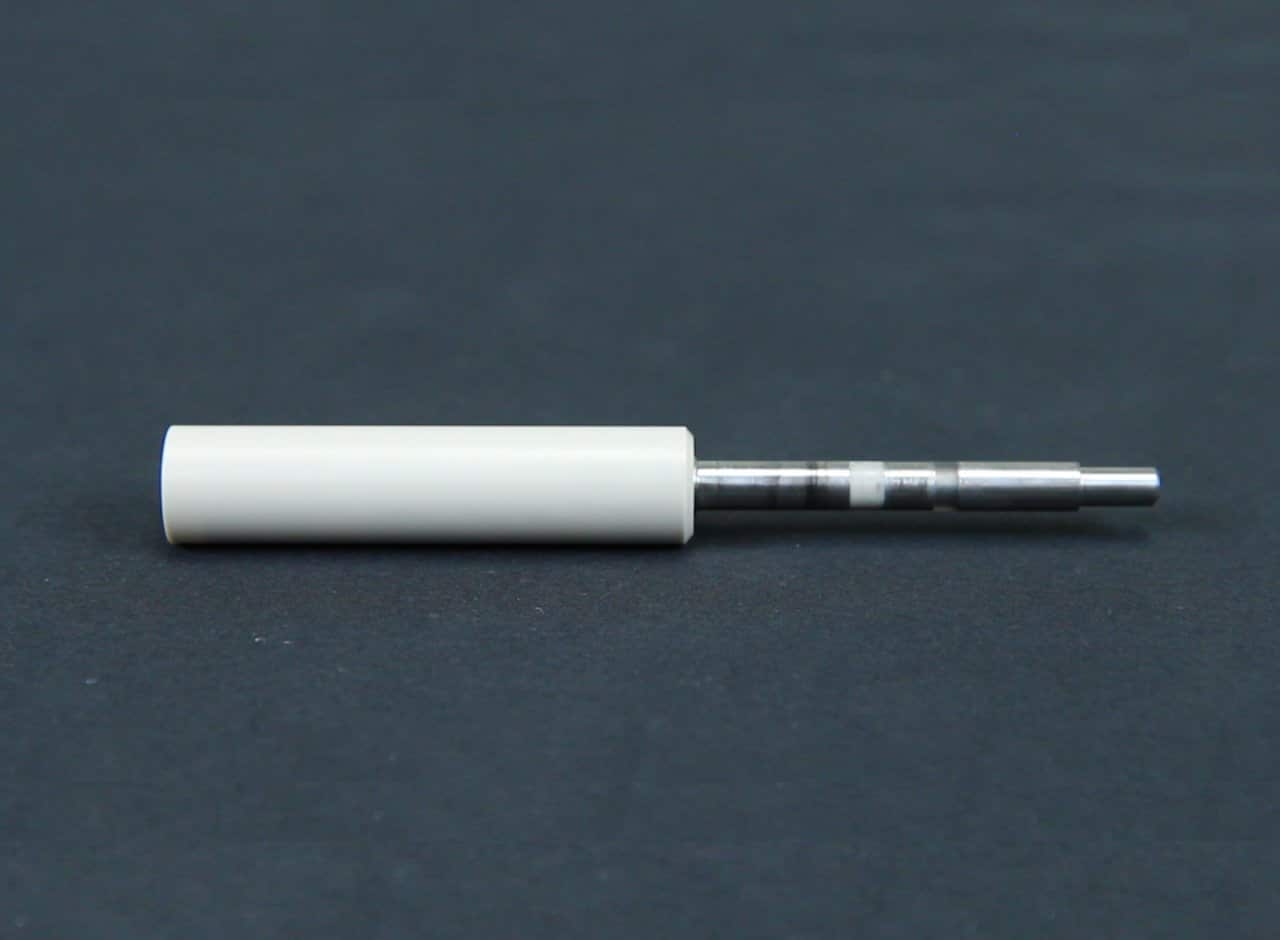

[WV10-RDE-E5]WaveVortex 10 Rotating Disk Electrode Bundle
features E5 series RDE tip with fixed glassy carbon disk
includes WaveVortex 10 rotator, electrodes, cell, and accessories
[WV10-RDE-E5TQ]WaveVortex 10 ChangeDisk Rotating Disk Electrode Bundle
features E5TQ series RDE tip with removable glassy carbon disk insert
includes WaveVortex 10 rotator, electrodes, cell, and accessories
[WV10-RRDE-E8R4]WaveVortex 10 Rotating Ring-Disk Electrode Bundle
features E8 series High-Efficiency RRDE tip with a fixed platinum ring and a fixed glassy carbon disk
includes WaveVortex 10 Rotator, electrodes, cell, and accessories
[WV10-RRDE-E6R1]WaveVortex 10 ChangeDisk Rotating Ring-Disk Electrode Bundle
features E6R1 series RRDE tip with removable glassy carbon disk insert and fixed platinum ring
includes WaveVortex 10 rotator, electrodes, cell, and accessories
WaveVortex 10/WaveNowXV Potentiostat Bundles
[WNXV-WV10-RDE-E5]WaveVortex 10 Rotating Disk Electrode with WaveNowxv Bundle
features E5 series RDE tip with fixed glassy carbon disk
includes potentiostat, WaveVortex 10 rotator, software, cables, electrodes, cell, and accessories
[WNXV-WV10-RDE-E5TQ]WaveVortex 10 ChangeDisk Rotating Disk Electrode with WaveNowxv Bundle
features E5TQ series RDE tip with removable glassy carbon disk insert
includes potentiostat, WaveVortex 10 rotator, software, cables, electrodes, cell, and accessories
WaveVortex 10/WaveNow Wireless Potentiostat Bundles
[WNW-WV10-RDE-E5]WaveVortex 10 Rotating Disk Electrode with WaveNow Wireless Bundle
features E5 series RDE tip with fixed glassy carbon disk
includes potentiostat, WaveVortex 10 rotator, software, cables, electrodes, cell, and accessories
[WNW-WV10-RDE-E5TQ]WaveVortex 10 ChangeDisk Rotating Disk Electrode with WaveNow Wireless Bundle
features E5TQ series RDE tip with removable glassy carbon disk insert
includes potentiostat, WaveVortex 10 rotator, software, cables, electrodes, cell, and accessories
WaveVortex 10/WaveDriver 40 DC Bipotentiostat Bundles
[WD40-WV10-RDE-E5]WaveVortex 10 Rotating Disk Electrode with WaveDriver 40 Bundle
features E5 series RDE tip with fixed glassy carbon disk
includes WaveDriver 40 bipotentiostat, WaveVortex 10 rotator, software, cables, electrodes, cell, and accessories
[WD40-WV10-RDE-E5TQ]WaveVortex 10 ChangeDisk Rotating Disk Electrode with WaveDriver 40 Bundle
features E5TQ series RDE tip with removable glassy carbon disk insert
includes WaveDriver 40 bipotentiostat, WaveVortex 10 rotator, software, cables, electrodes, cell, and accessories
[WD40-WV10-RRDE-E8R4]WaveVortex 10 Rotating Ring-Disk Electrode with WaveDriver 40 Bundle
features E8 series High-Efficiency RRDE tip with a fixed platinum ring and a fixed glassy carbon disk
includes WaveDriver 40 bipotentiostat, WaveVortex 10 Rotator, software, cables, electrodes, cell, and accessories
[WD40-WV10-RRDE-E6R1]WaveVortex 10 ChangeDisk Rotating Ring-Disk Electrode with WaveDriver 40 Bundle
features E6R1PK series ChangeDisk RRDE tip with a fixed platinum ring and a removable glassy carbon disk insert
includes WaveDriver 40 bipotentiostat, WaveVortex 10 Rotator, software, cables, electrodes, cell, and accessories
WaveVortex 10 Rotator/WaveDriver 100 EIS Potentiostat Bundles
[WD100-WV10-RDE-E5]WaveVortex 10 Rotating Disk Electrode with WaveDriver 100 Bundle
features E5 series RDE tip with fixed glassy carbon disk
includes WaveDriver 100 potentiostat, WaveVortex 10 rotator, software, cables, electrodes, cell, and accessories
[WD100-WV10-RDE-E5TQ]WaveVortex 10 ChangeDisk Rotating Disk Electrode with WaveDriver 100 Bundle
features E5TQ series RDE tip with removable glassy carbon disk insert
includes WaveDriver 100 potentiostat, WaveVortex 10 rotator, software, cables, electrodes, cell, and accessories
WaveVortex 10 Rotator/WaveDriver 200 EIS Bipotentiostat Bundles
[WD200-WV10-RDE-E5]WaveVortex 10 Rotating Disk Electrode with WaveDriver 200 Bundle
features E5 series RDE tip with fixed glassy carbon disk
includes WaveDriver 200 bipotentiostat, WaveVortex 10 rotator, software, cables, electrodes, cell, and accessories
[WD200-WV10-RDE-E5TQ]WaveVortex 10 ChangeDisk Rotating Disk Electrode with WaveDriver 200 Bundle
features E5TQ series RDE tip with removable glassy carbon disk insert
includes WaveDriver 200 bipotentiostat, WaveVortex 10 rotator, software, cables, electrodes, cell, and accessories
[WD200-WV10-RRDE-E8R4]WaveVortex 10 Rotating Ring-Disk Electrode with WaveDriver 200 Bundle
features E8 series High-Efficiency RRDE tip with a fixed platinum ring and a fixed glassy carbon disk
includes WaveDriver 200 bipotentiostat, WaveVortex 10 rotator, software, cables, electrodes, cell, and accessories
[WD200-WV10-RRDE-E6R1]WaveVortex 10 ChangeDisk Rotating Ring-Disk Electrode with WaveDriver 200 Bundle
features E6R1PK series ChangeDisk RRDE tip with a fixed platinum ring and a removable glassy carbon disk insert
includes WaveDriver 200 bipotentiostat, WaveVortex 10 rotator, software, cables, electrodes, cell, and accessories

Description

WaveVortex® 10 전극 회전기는 제한된 실험실 공간에서 RDE 및 RRDE 실험을 수행하려는 사람들의 요구에 맞게 설계되었으며 Pine Research 사의 15mm OD RDE/RRDE 전극과 많은 셀, 유리 제품 및 액세서리와 호환됩니다. (AFE3T050GC 등 12mm OD 전극과는 호환 불가)


컨트롤 박스, 모터, 샤프트 및 인클로저가 모두 하나의 편리한 장치에 고정되어 WaveVortex를 컴팩트하고 쉽게 이동할 수 있습니다. 회전 속도는 디지털 디스플레이가 있는 전면 패널에서 수동으로 제어할 수 있을 뿐만 아니라 2차 회전 속도 제어를 위해 전위차 장치 또는 기타 전압 소스의 외부 전압 소스를 사용하여 제어할 수 있습니다.


전극은 실버-카본 브러시를 사용하여 로테이팅 샤프트에 연결됩니다. 두 개의 접점이 있는데 빨간색은 디스크용이고 파란색은 링용입니다.


WaveVortex 10은 RoHS를 준수합니다.

Specifications

WaveVortex 10 Electrode Rotator

Rate Accuracy

100 - 200 RPM: Accurate to within ±2 counts of display reading
200 - 8,000 RPM: Accurate to within ±1% of display reading

Rate Control (external)

Optional rate control via input signal on external I/O port
Available control ratios: 1, 2, or 4 RPM/mV, jumper selectable

Rate Output

Optional rate monitoring via output signal on external I/O port
Output signal ratio: 2 RPM/mV

Maximum Continuous Torque

18.7 mN m

Motor Power

11 W

Electrode Connections

Disk electrode: red banana jack on motor unit
Ring electrode: blue banana jack on motor unit

Dimensions

Width: 15 in (38 cm)
Depth: 11 in (28 cm)
Height with enclosure window in lower position: 15 in (38 cm)
Clearance required to raise enclosure window: 24 in (61 cm)

Shipping Information

Shipping weight: 24 lb (11 kg)
Shipping dimensions: 16.0 × 16.0 × 16.0 in (41 × 41 × 41 cm)

Rotating Disk (RDE)

E5, E5TQ

Rotating Ring-Disk (RRDE)

E6, E7, E8

Rotating Cylinder (RCE)

N/A

Additional Specifications

click here for a complete list of specifications

Documention

WaveVortex 10 Electrode Rotator

DRU10158

WaveVortex User Guide
click here to download (4 MB download)

DRB10204

WaveVortex 10 Brochure
click here to download (916 KB download)

DRK10229

WaveVortex 10 Calibration and Verification Procedure
click here to download (2 MB download)
